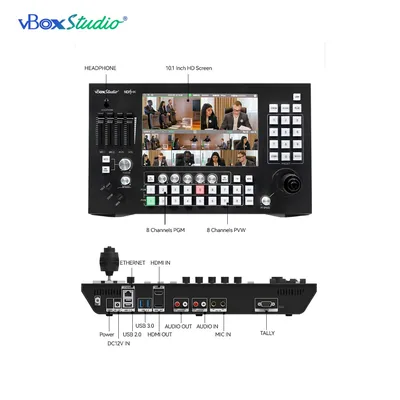

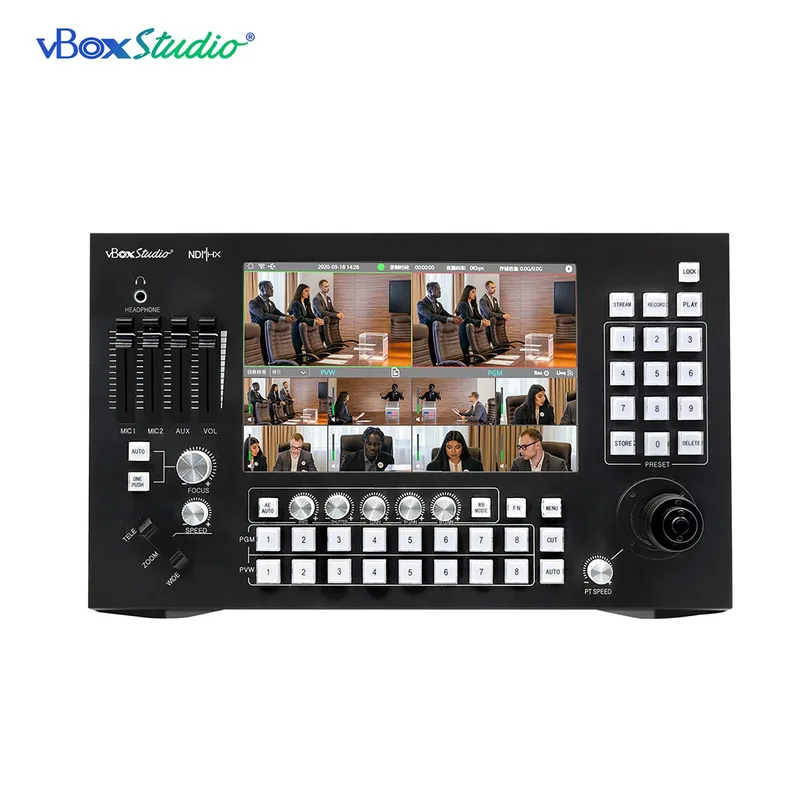

About the ViZion SP8
The ViZion SP8® supports 8 channels, RTMP recording, PTZ camera control
Features
Integration of Live Control This device integrates live control, which allows you to fine-tune your camera while you're live streaming. This simplifies your live broadcast equipment and makes it easier to set up your live broadcast environment. For example, you can use the touch screen to adjust the camera's focus, zoom, and white balance.
Multi-channel Input and Output This device supports up to 8 channels of 1080p60 video input. In addition, you can start your live broadcast with just one network cable and an IP camera. For instance, you can connect a variety of video sources, including cameras, computers, and smartphones.
Support for Multi-protocol This device supports network HDMI, local file access, and output video. Furthermore, it supports mainstream live streaming protocols, such as RTMP and RTSP. Additionally, you can choose NDI|HX2, which is a high-performance live streaming protocol.
Integrated Mixer This device has a built-in 4-channel mixer that supports multiple audio input and output methods. For example, you can mix audio from multiple sources or to add effects to your audio. In other words, you can create a professional-sounding live broadcast.
Various Operation Methods You can use the touch screen, buttons, or other methods to efficiently control your live broadcast. This ensures that your live broadcast is always under your control. For instance, you can use the touch screen to switch between different video sources or to add transition effects.
Various Transition Effects This device supports multiple transition effects, such as fade in and fade out. You can also customize the transition effects to match your specific needs. For example, you can create a smooth transition between two video sources.
Custom Overlay Content This device supports subtitle overlay and logo overlay. In other words, you can add text or images to your live broadcast. For instance, you can add a logo to your live stream to promote your business.
High-definition Touch Display This device has a 10.1-inch high-definition touch display, which makes it easy to operate. For example, you can easily see the live video feed and control the device's settings.
| Video Standard | FHD |
| Video ProcessingCapability | Input: Up to :1920x1080p60 * 8Output: Up to 1920x1080p60（HDMI）+1920x1080p60（IP）+1280x720p60（IP） |
| Video Input | 8 channels IP video streaming +1 channel HDMI+ local video |
| Video Output | 2 channels IP video streaming +1 channel HDMI+ local recording |
| Live Video Encoding Format | H.264、H.265 |
| Live Video Bitrate | 512Kbps~16384Kbps |
| Live Video Bitrate Mode | CBR |
| Network Input Protocol | RTSP、RTMP、NDI|HX |
| Network Output Protocol | RTSP、RTMP |
| Audio Input | RCA*1TRS6.3mm*2: Compatible with active and passive signals Video embedded |
| Audio Output | RCA*1Video embedded |
| Mixer | 4 physical tuning + 8 digital tuning |
| Transition Control | T-Bar、button 、touch |
| Subtitle Overlay | Supported |
| Logo Overlay | Supported |
| Tally | DB9 output |
| USB Port | USB3.0*2+USB2.0*2 |
| Camera Control | Supports PTZ, focus, exposure, white balance, preset position control |
| Power Supply | |
| Input Voltage | DC 12V |
| Input Current | 3A |
| Rated Power | 36W |
| POE | Optional 802.3AT |
| Others | |
| Use Environment | Indoor |
| Operating Temperature | 32 to 72°F |
| Storage Temperature | 14 to 122°F |
| Camera Dimensions | 16.5 x 10.14 x 4.8" |
| Accessories | Power adapter, Power cable, HDMI cable,User manual, Bracket |
Packaging Info
| Package Weight | 9.69 lb |
| Box Dimensions (LxWxH) | 18.7 x 13.2 x 6.1" |
REVIEW
https://youtu.be/22EXCZJzkIs
Reviews
I have been using this switcher for over 6 months now and I must say I am very pleased with its functionality and performance. It has made setting up so much easier as I no longer have to carry around a seperate PTZ controller and encoder as i used to do in the past. This devive can do both functions. I would definalty reccomend this product to anyone that is serious about streaming. I have never had it crash or drop the stream like other streaming software would often do. This device is solid like a tank and I have been receiving updates which is so important as new functionality is being added to the product.
