About the vBoxStudio II

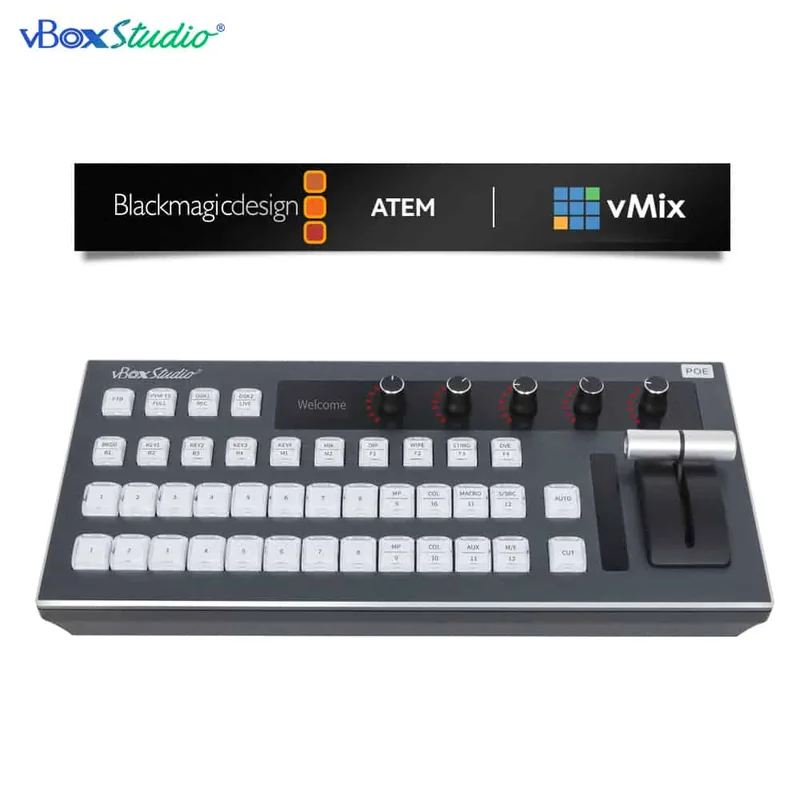

The vBoxStudio II is capable of controlling both Atem and vMix
Features
Integrated hardware design:
Easy-to-use ,fully embedded system with simplified structure, integrating director switching, audio adjustment and special effects & transitions all in one.
Brand-new upgrade function, custom combination to play more effects:
The brand-new upgrade ATEM function supports quick operation of ATEM popular functions such as S/SRC, MACRO, AUX, M/E, etc., and supports custom function settings to output.
Supports up to 12 channels of live video switching:
Both ATEM and vMix support 12 channel PGM+12 channel PVW live switching.

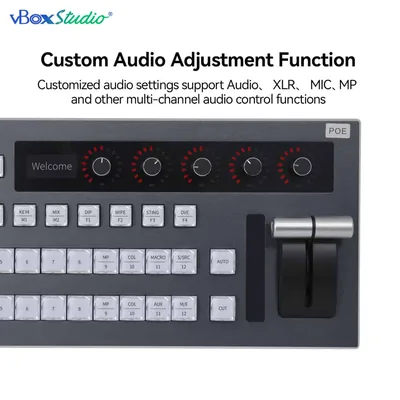

Built-in custom audio adjustment function:
Customized audio settings support Audio、 XLR、 MIC、MP and other multi-channel audio control functions.
Compatible with plenty of live broadcast software:
In addition to supporting ATEM series devices, it also supports MIDI protocol, compatible with Vmix and other various live broadcast software.Complete the control of functions such as directing, transitions, tuning, one-key black screen, etc., multi-purpose machine is more worry-free.

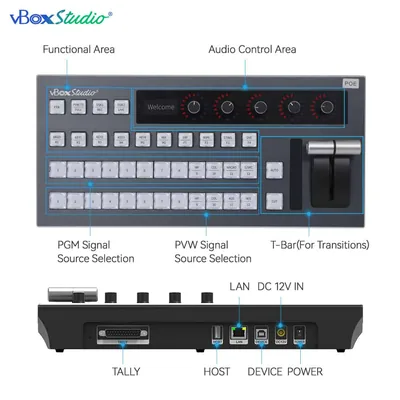

Support 24-channel tally output function:
Built-in DP25 tally interface, supports up to 24 tally signal output functions.

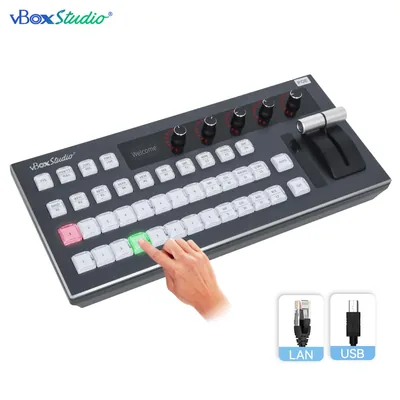

USB 2.0, LAN dual interface connections, simple and convenient:
Supports LAN and USB 2.0 drive-free connections ( Note: ATEM only supports LAN connection ), and can transmit video signals to computers and live video production software without a capture card, simple and convenient.
All aluminum alloy body:
Anodized aluminum alloy panel process treatment, outstanding quality.
| Main Parameters | |
| Audio Control | 1ch master+4ch input |
| Transition Control | Auto transitions, hard cuts, T-Bar |
| OLED Display | Set device parameters |
| Indicator Light | Indicate switcher status |
| Tally | 12ch PGM+12ch PVW |
| ATEM Functions: | |
| Connection Method | 100M LAN，support POE 802.3af |
| Video Control | 12ch inputs |
| Transition Effects | MIX / DIP / WIPE / STING / DVE |
| Upstream Keyboard | BKGD / KEY1 / KEY2 / KEY3 / KEY4 |
| Downstream Keyboard | DSK1 / DSK2 |
| FTB | yes |
| PREV TRANS | yes |
| MACRO | yes |
| S/SRC | yes |
| M/E | yes |
| AUX | yes |
| Vmix Functions: | |
| Connection Method | 100M LAN，support POE 802.3af；USB |
| Video Control | 12ch inputs |
| Transition Effects | 4 kinds |
| Picture-in-picture Function | R1 / R2 / R3 / R4 |
| Playback Setting | M1 / M2 |
| REC | yes |
| LIVE | yes |
| T-BAR | yes |
| Power Supply | |
| Input Voltage | DC 12V |
| Input Current | 0.3A |
| Rated Power | 4W |
| POE | POE 802.3af for optional |
| Powered by USB | yes ( rely on the USB power supply capability of the computer ) |
| Others | |
| Use Environment | Indoor |
| Operating Temperature | 14F~40F |
| Storage Temperature | -68F-158F |
| Dimensions | 13.93*(W)6.49*(H)2.63 inches |
| Weight | 3.30 lbs |
| Accessories | Power adapter*1, USB cable*1, User manual*1 |
