vBoxStudio® – ViZion Z2 – PTZ NDI Camera FHD 20X


Essential details ViZion Z2
Brand Name: vBoxStudio®
Model Number: SP-SVH-Z2
Ports: NDI 20x USB3.0 SDI IP HDMI
Effective Pixels: 2.07 Megapixels
Resolution: 1080p60/50,1080i60/50,1080p30/25,720p60/50
Lens: F=3.9mm~46.80 mm 10X Optical Zoom
Pan Rotation: 355°
Tilt Rotation: -30°~+90°
Focust System: Auto Focus/ Manual
Size: 131*131*175mm
Warranty: 3 years
Certification: RoHS/FCC/CE


8500 in stock (can be backordered)



ViZion Z2 Features

1080P HD Resolution: ViZion Z2: Integrates the SONY 1/2.8” Progressive CMOS sensor, 2.07 Megapixels, can reach max. 1920×1080 high resolution with frame rate up to 60fps.

Multiple Outputs: Support NDI, HDMI, 3G-SDI, LAN, USB3.0 HD 1080P output in sync.

Ultra High Frame Rate: video output frame rate can reach 1080P 60fps.

Optical zoom : ViZion Z2: 20x optical zoom+16x digital zoom

Low Light: Brand new CMOS image sensor with ultra high S/N Ratio can effectively reduce image noise in low light conditions. Applying 2D&3D Digital noise reduction at the same time, it reduces image noise greatly, even in ultra low light conditions, it could still remain the frame clean and clear, S/N Ratio of the image is higher than 55dB.

Remote Control: Use RS232, RS422/RS485 serial ports to control multiple cameras with daisy chain.

Signal transparent transmission function of infrared remote controller:

Apart from receiving its own infrared remote controller’s signals, it can also receive signals of the consumer’s infrared remote controller and send to video conference terminal via VISCA IN port.

Multi-installation Methods: Wall mounting, desktop or ceiling mounting.



Resolution 1080p60/50, 1080p59.94/29.97, 1080p30/25, 1080i60/50, 1080i59.94, 720p60/50
Image Sensor SONY 1/2.8” Progressive CMOS
Scan Mode Line by line
Lens ViZion Z2 20X optical zoom, f=5.2mm(w)~104mm(f)
Focus System Auto/Manual
Minimum Illumination 0.5 Lux @ (F1.8, AGC ON)
Shutter Speed 1/25s~1/10000s
White Balance Auto/Manual/One-click/Indoor/Outdoor
BacklightCompensation Support
Digital NoiseReduction 2D&3D Digital noise reduction
S/N Ratio ≥55dB
Horizontal View Angle ViZion Z2 58.7°(W)~3.2°(T)
Vertical View Angle ViZion Z2 33°~1.8°
Horizontal Rotation  Range 355°
Vertical Rotation Range -30°~+90°
Horizontal Rotation Speed Range 1°~90°/s
Vertical Rotation Speed Range 1°~90°/s
Electronic Flip Support
Image Freeze Support
POE Power Supply 802.3af(optional)
Preset Position 9 preset positions by IR remote controller, 200 preset positions by joystick controller or PC
Accuracy of Preset Position 0.1°±10%
USB Features
Protocol UVC1.1, UAC1.0
Operating System Window7 and above, MacOS, Linux, Android
UVC Video Coding Format YUY2, MJPEG, H.264, H.265
UVC Video Resolution 320×240, 640×480, 720×576, 800×600, 1280×720, 1920×1080, 3840×2160 and so on
UVC Video Frame Rate Max.60
Network Characteristics
Code Stream Main code stream*1,Auxiliary code stream*1
Coding Format H.264, H.265, MJPEG
Streaming Media Protocol RTMP, RTSP, RTMPS, ONVIF, SRT, NDI|HX(optional)
Main Code Stream Resolution 576P30, 720P25, 720P30, 720P50, 702P60, 1080P25, 1080P30, 1080P50, 1080P60
Auxiliary Code Stream Resolution 576P30, 720P25, 720P30
Video Output HD 1 Line, HDMI: Version1.41 Line, NDI, 3G-SDI: SMPTE-274M(Level A), SMPTE-296M

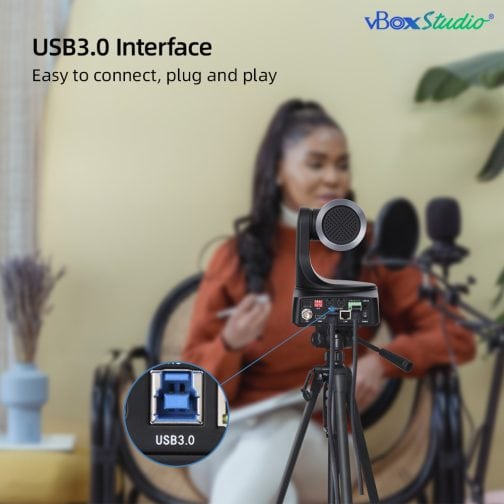

USB Interface 1 Line, USB 3.0, Type-B Socket
Network Interface 1 Line, RJ45: 10M/100M Ethernet port
Other Input 1 Line, Line In, 3.5mm AUDIO-IN
Control Mode 1 Line, RS232 IN: 8 Pin Mini Din, up to 30 meters, VISCA/Pelco-D/Pelco-P Protocol
1 Line, RS232 OUT: 8 Pin Mini Din, up to 30 meters, VISCA/Pelco-D/Pelco-P Protocol
1 Line, RS422/485 IN/OUT: Nine-core Phoenix Interface, up to 1200 meters, VISCA/Pelco-D/Pelco-P Protocol
Power Interface DC 12V IEC60130-10(JEITA Standard RC-5320A) TYPE4
General Specifications
Input Voltage DC 12V
Input Current Max.1.0A
Power Consumption Max.12W(DC 12V)
Operating Temperature 0~40℃
Storage Temperature -10-60℃
Camera Dimensions (L)161×(W)133×(H)181mm
Color Black
Weight 1200g

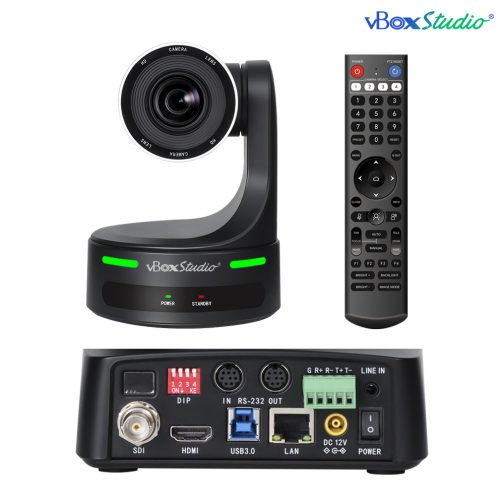

Accessories DC 12V power adapter, IR Remote, Operation manual, RS-232C Cable, HDMI Cable, USB3.0 Cable, Ceiling bracket (Wall bracket optional)



Additional information

Weight 1.8 lbs
Dimensions 10 × 12 × 11 in
