Deal!

vBoxStudio® ViZion SP8 – 8 Channels NDI Switcher and PTZ Controller – Touch Screen

(1 customer review)

Original price was: $3,895.00.Current price is: $3,486.99.

Warranty: 1 Year

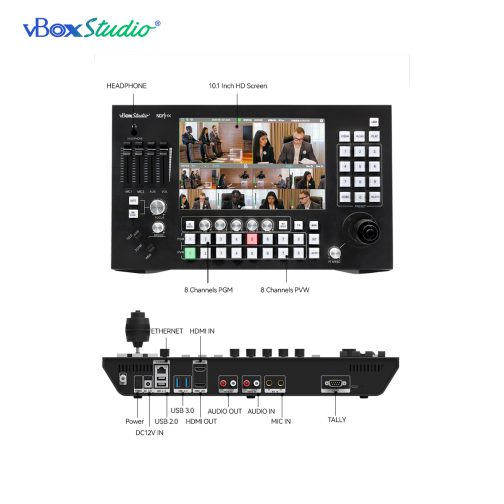

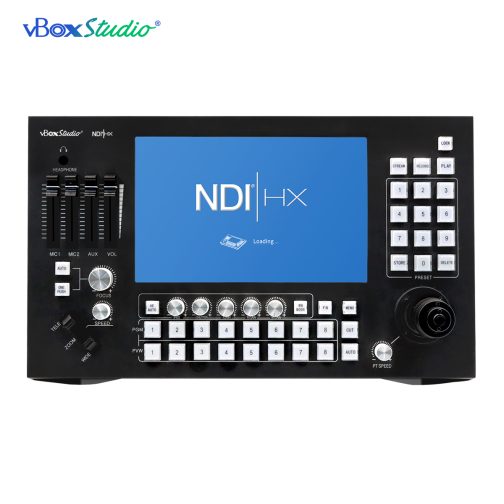

Designed for single-operator use, the ViZion SP8®  8 Channels NDI Switcher and PTZ Controller from vBoxStudio® provides full video production control, including PTZ moves, dual IP streaming, color correction, graphics overlays, audio input/output, and both recording and playback options. This switcher/controller incorporates a 10.1″ touchscreen interface, a PTZ joystick, a zoom rocker, and push-button controls.

700 in stock (can be backordered)

-

Description

The ViZion SP8® supports 8 channels, RTMP recording, PTZ camera control

Features

Integration of Live Control
This device integrates live control, which allows you to fine-tune your camera while you’re live streaming. This simplifies your live broadcast equipment and makes it easier to set up your live broadcast environment. For example, you can use the touch screen to adjust the camera’s focus, zoom, and white balance.

Multi-channel Input and Output
This device supports up to 8 channels of 1080p60 video input. In addition, you can start your live broadcast with just one network cable and an IP camera. For instance, you can connect a variety of video sources, including cameras, computers, and smartphones.

Support for Multi-protocol
This device supports network HDMI, local file access, and output video. Furthermore, it supports mainstream live streaming protocols, such as RTMP and RTSP. Additionally, you can choose NDI|HX2, which is a high-performance live streaming protocol.

Integrated Mixer
This device has a built-in 4-channel mixer that supports multiple audio input and output methods. For example, you can mix audio from multiple sources or to add effects to your audio. In other words, you can create a professional-sounding live broadcast.

Various Operation Methods
You can use the touch screen, buttons, or other methods to efficiently control your live broadcast. This ensures that your live broadcast is always under your control. For instance, you can use the touch screen to switch between different video sources or to add transition effects.

Various Transition Effects
This device supports multiple transition effects, such as fade in and fade out. You can also customize the transition effects to match your specific needs. For example, you can create a smooth transition between two video sources.

Custom Overlay Content
This device supports subtitle overlay and logo overlay. In other words, you can add text or images to your live broadcast. For instance, you can add a logo to your live stream to promote your business.

High-definition Touch Display
This device has a 10.1-inch high-definition touch display, which makes it easy to operate. For example, you can easily see the live video feed and control the device’s settings.

Video Standard FHD
Video ProcessingCapability Input: Up to :1920x1080p60 * 8Output: Up to 1920x1080p60(HDMI)+1920x1080p60(IP)+1280x720p60(IP)
Video Input 8 channels IP video streaming +1 channel HDMI+ local video
Video Output 2 channels IP video streaming +1 channel HDMI+ local recording
Live Video Encoding Format H.264、H.265
Live Video Bitrate 512Kbps~16384Kbps
Live Video Bitrate Mode CBR
Network Input Protocol RTSP、RTMP、NDI|HX
Network Output Protocol RTSP、RTMP
Audio Input RCA*1TRS6.3mm*2: Compatible with active and passive signals Video embedded
Audio Output RCA*1Video embedded
Mixer 4 physical tuning + 8 digital tuning
Transition Control T-Bar、button 、touch
Subtitle Overlay Supported
Logo Overlay Supported
Tally DB9 output
USB Port USB3.0*2+USB2.0*2
Camera Control Supports PTZ, focus, exposure, white balance, preset position control
Power Supply
Input Voltage DC 12V
Input Current 3A
Rated Power 36W
POE Optional 802.3AT
Others
Use Environment Indoor
Operating Temperature 32 to 72°F
Storage Temperature 14 to 122°F
Camera Dimensions 16.5 x 10.14 x 4.8″

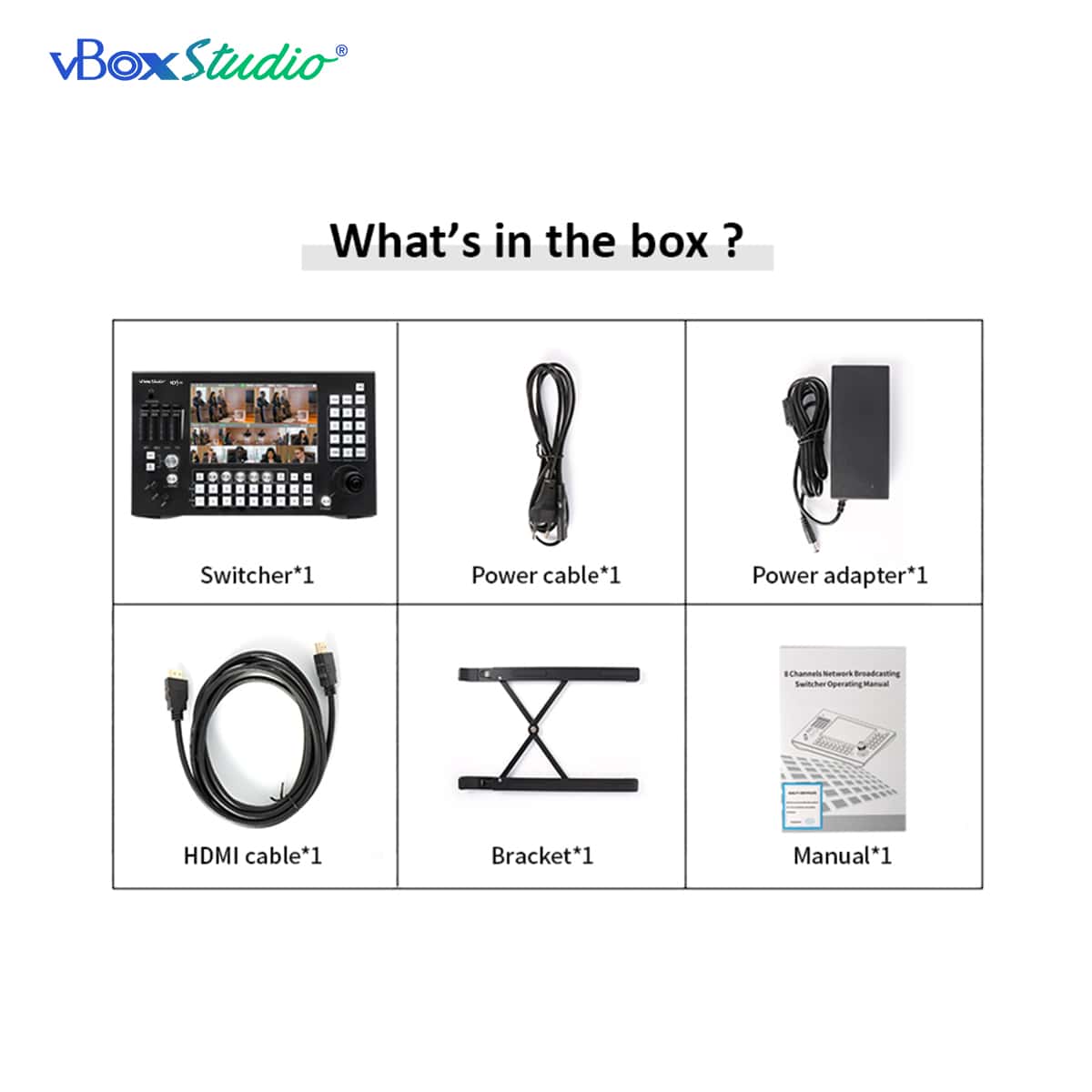

Accessories Power adapter, Power cable, HDMI cable,User manual, Bracket
Packaging Info
Package Weight 9.69 lb
Box Dimensions (LxWxH) 18.7 x 13.2 x 6.1″



REVIEW



User’s Manual

Additional information

Weight 6 lbs
Dimensions 49 × 33 × 23 in

1 review for vBoxStudio® ViZion SP8 – 8 Channels NDI Switcher and PTZ Controller – Touch Screen

  1. Vaughn hazell (verified owner)

    I have been using this switcher for over 6 months now and I must say I am very pleased with its functionality and performance. It has made setting up so much easier as I no longer have to carry around a seperate PTZ controller and encoder as i used to do in the past. This devive can do both functions. I would definalty reccomend this product to anyone that is serious about streaming. I have never had it crash or drop the stream like other streaming software would often do. This device is solid like a tank and I have been receiving updates which is so important as new functionality is being added to the product.
