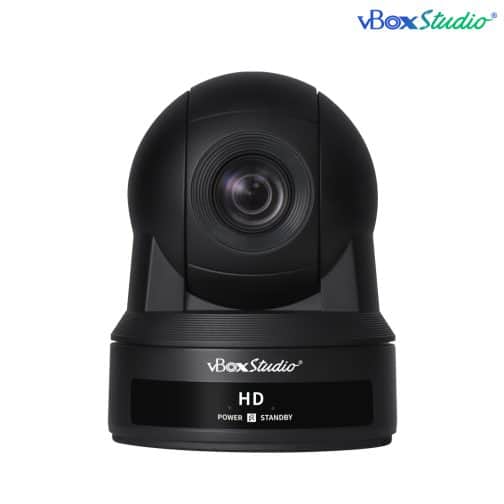

vBoxStudio® – ViZion D1 – PTZ NDI Camera FHD 20X

(1 customer review)

Original price was: $1,959.99.Current price is: $1,559.99.

Essential details ViZion D1
Type: Video Conference System
Brand Name: vBoxStudio®
Model Number: SP-SVH-D1
Product Name: ViZion D1 – NDI 20x USB3.0 SDI IP HDMI Video conference camera
Effective Pixels: 2.07 Megapixels
Resolution: 1080p60/50,1080i60/50,1080p30/25,720p60/50
Lens: F=3.9mm~46.80 mm 10X Optical Zoom
Pan/Tilt Rotation: PAN-TILTHorizontal view angle: 58.7°(W)~3.2°(T)
Focust System: Auto/Manual (-3 ~ +18dB) Gain,etc.
Warranty: 3 years
Certification: RoHS/FCC/ce


8500 in stock (can be backordered)



ViZion D1 Features

◆Full HD: 1080p60/50

◆Lens&Hov: 20x optical zoom,58.7° wide angle

◆Multiple Outputs:


2.POE power supply optional

3.Support NDI|HX

◆Dual IP-Stream: H.264 and MJPEG compression enabling Full HD video stream by ultra low bandwidth over RTSP, TCP/IP, HTTP, etc

◆Low Noise

◆Low Light:High video quality in low light conditions

◆Wall mounting, desktop or ceiling mounting;

◆Full compatibility with SONY terminal.


Camera model SP-SVH-D1
Image Sensor 1/2.8″ Sony CMOS Sensor
Effective Pixels 3.50 Megapixels
Resolution 1080p60/50, 1080i60/50,1080i59.94, 1080p/30, 1080p/25
Signal System PAL/NTSC
Lens 20X optical zoom
f=4.7mm(wide)~94.0 mm(far end)  F1.6~F2.8
Horizontal View Angle 58.7°(W)~3.2°(T)

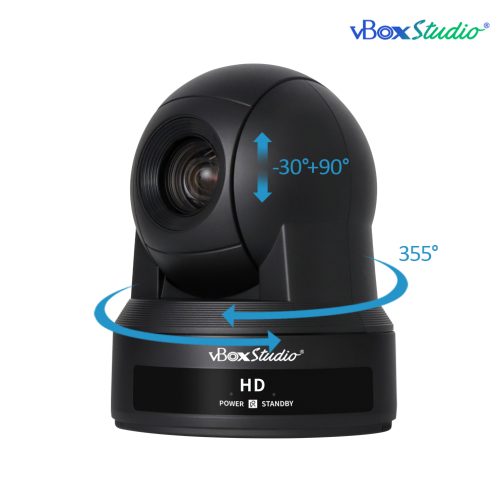

Pan 355°(max. speed:80°/s)
Tilt -30° to +90° (max. speed: 60°/s)
Focus System Auto/Manual
S/N Ratio ≥50db
Preset Position 9 preset positions by IR remote controller, 255 preset positions by Keyboard or PC
Minimum Illumination 0.1Lux
Exposure Control Auto/Manual/Priority AE/Exposure Compensation/Bright
Shutter Speed 1/1~1/10,00S
Gain Auto/Manual
White Balance Auto/Manual/ATW/One-click/Indoor/Outdoor
Image Effect Full color/black and white/Electronic flip
Video Output HD HDMI, 3G-SDI,USB2.0, IP (POE optional)
Other Input Line In
Control Protocol SONY VISCA, PELCO P/D
Control Mode RS-232C, RS-422/485
Power 12 DC(10.8~13.0DC)
Power Consumption Max. 30W(DC 12V)
Operating Temperature 0~40℃
Storage Temperature -20-60℃
Camera Dimension (L)170×(W)151×(H)190mm
Weight 1320g
Color Black/White
Accessories DC 12V power adapter, IR Remote, Operation manual, RS-232C Cable, HDMI cable, USB Cable , Ceiling bracket
SP8 Compatibility  Yes. Satella ViZion SP8 Video Switcher
Certificate ISO/CE/FCC/ROSH
Warranty 3 years

Additional information

Weight 1.8 lbs
Dimensions 10 × 12 × 11 in
