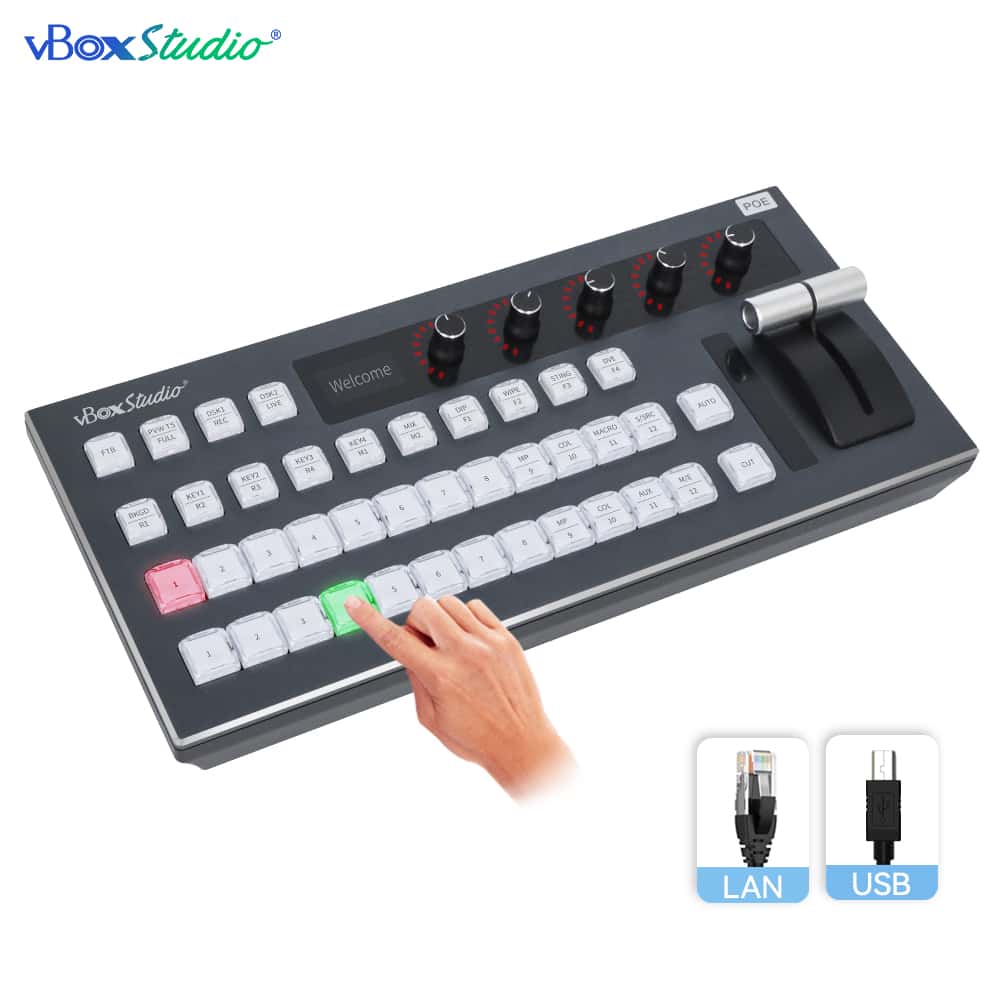

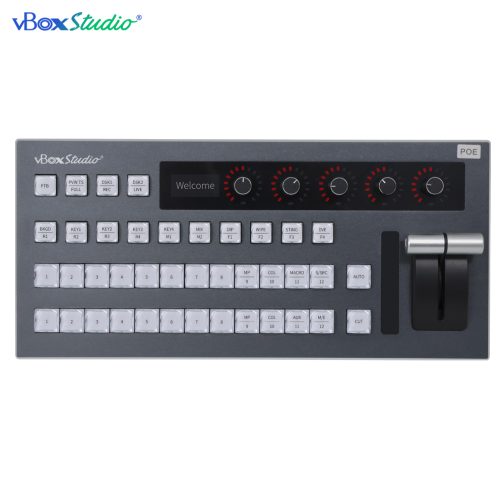

vBoxStudio II | vMix and Atem Controller


500 in stock (can be backordered)



The vBoxStudio II is capable of controlling both Atem and vMix


Integrated hardware design:

Easy-to-use ,fully embedded system with simplified structure, integrating director switching, audio adjustment and special effects & transitions all in one.

Brand-new upgrade function, custom combination to play more effects:

The brand-new upgrade ATEM function supports quick operation of ATEM popular functions such as S/SRC, MACRO, AUX, M/E, etc., and supports custom function settings to output.

Supports up to 12 channels of live video switching:

Both ATEM and vMix support 12 channel PGM+12 channel PVW live switching.

Built-in custom audio adjustment function:

Customized audio settings support Audio、 XLR、 MIC、MP and other multi-channel audio control functions.

Compatible with plenty of live broadcast software:

In addition to supporting ATEM series devices, it also supports MIDI protocol, compatible with Vmix and other various live broadcast software.Complete the control of functions such as directing, transitions, tuning, one-key black screen, etc., multi-purpose machine is more worry-free.

Support 24-channel tally output function:

Built-in DP25 tally interface, supports up to 24 tally signal output functions.

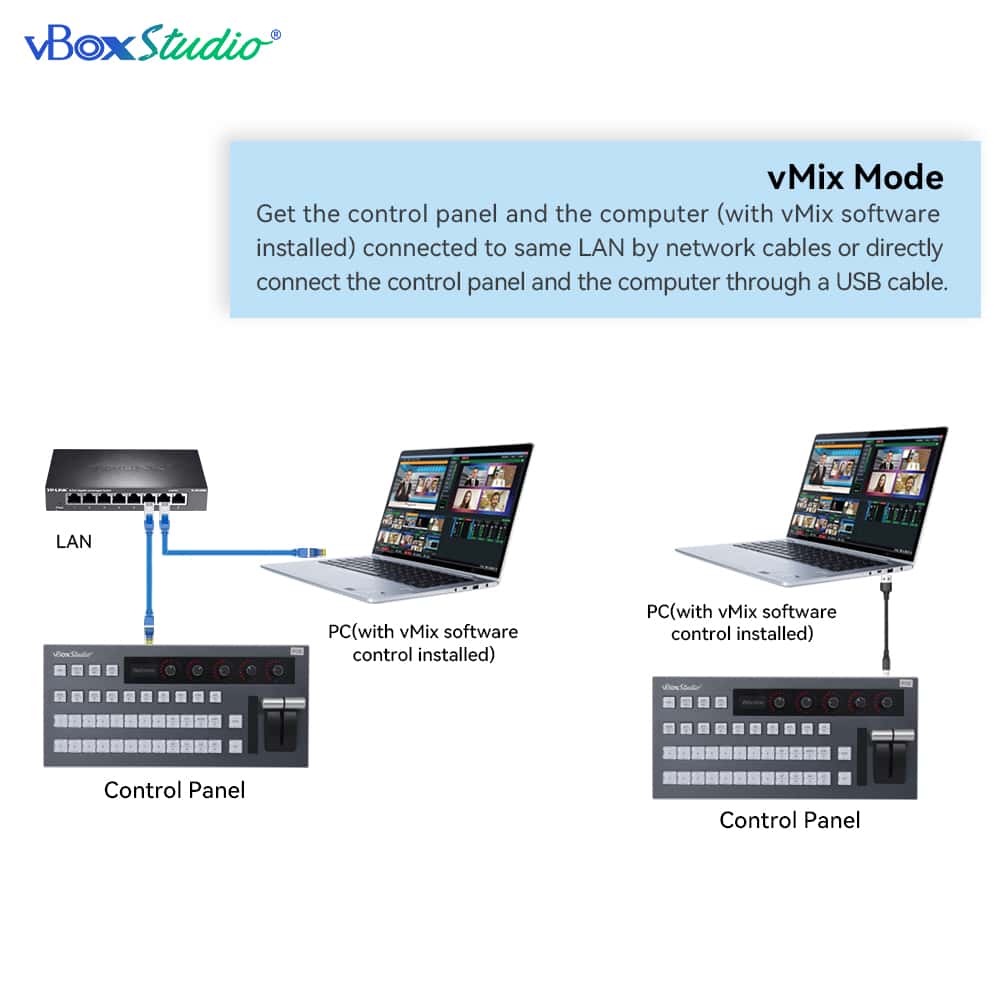

USB 2.0, LAN dual interface connections, simple and convenient:

Supports LAN and USB 2.0 drive-free connections ( Note: ATEM only supports LAN connection ), and can transmit video signals to computers and live video production software without a capture card, simple and convenient.

All aluminum alloy body:

Anodized aluminum alloy panel process treatment, outstanding quality.


Main Parameters
Audio Control 1ch master+4ch input
Transition Control Auto transitions, hard cuts, T-Bar
OLED Display Set device parameters
Indicator Light Indicate switcher status
Tally 12ch PGM+12ch PVW
ATEM Functions:
Connection Method 100M LAN,support POE 802.3af
Video Control 12ch inputs
Transition Effects MIX / DIP / WIPE / STING / DVE
Upstream Keyboard BKGD / KEY1 / KEY2 / KEY3 / KEY4
Downstream Keyboard DSK1 / DSK2
FTB yes
S/SRC yes
M/E yes
AUX yes
Vmix Functions:
Connection Method 100M LAN,support POE 802.3af;USB
Video Control 12ch inputs
Transition Effects 4 kinds
Picture-in-picture Function R1 / R2 / R3 / R4
Playback Setting M1 / M2
REC yes
LIVE yes
T-BAR yes
Power Supply
Input Voltage DC 12V
Input Current 0.3A
Rated Power 4W
POE POE 802.3af for optional
Powered by USB yes  ( rely on the USB power supply capability of the computer )
Use Environment Indoor
Operating Temperature 14F~40F
Storage Temperature -68F-158F
Dimensions 13.93*(W)6.49*(H)2.63 inches
Weight 3.30 lbs
Accessories Power adapter*1, USB cable*1, User manual*1

Additional information

Weight 4 lbs
Dimensions 15 × 38 × 3 in
